Fully automated capillary blood collection

See Product Summary

Health ID MicroBlood™

The Health ID MicroBlood™ is a fully automated capillary blood collection system that delivers liquid blood samples — up to 1 mL — directly into commercial microtubes, without venous puncture.

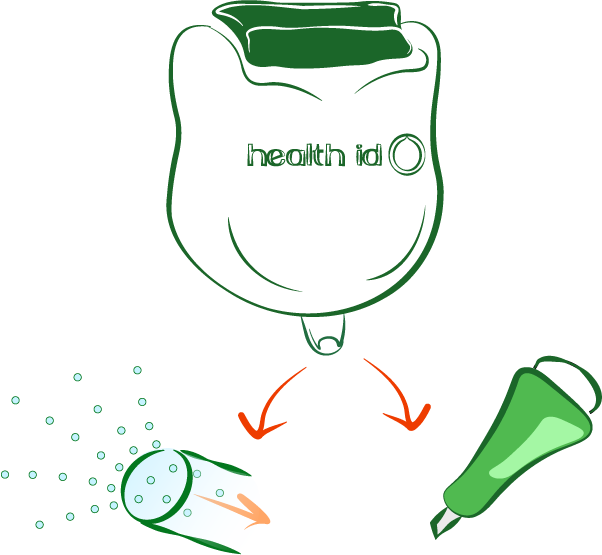

Applied to the upper arm, MicroBlood™ integrates lancet activation and controlled vacuum extraction in a single device. After activation, the system performs a precise microincision and automatically draws blood — minimizing operator dependence and standardizing one of the most variable steps in the diagnostic chain.

See how it works

Before Collection

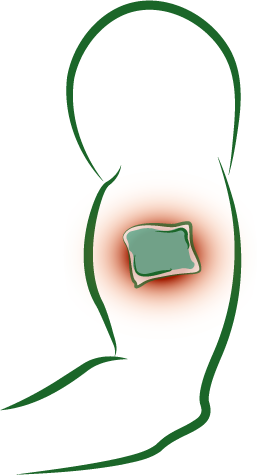

Prepare the collection site and apply MicroBlood™ to the upper arm.

Instructions for use

During Collection

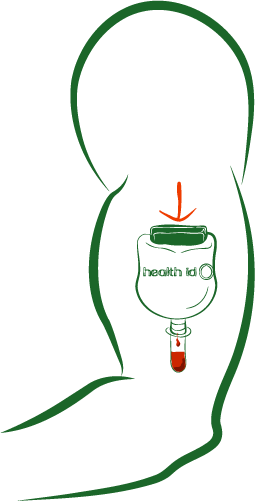

Activate the device. Microincision and vacuum-assisted extraction run automatically with controlled volume and flow.

Instructions for use

After Collection

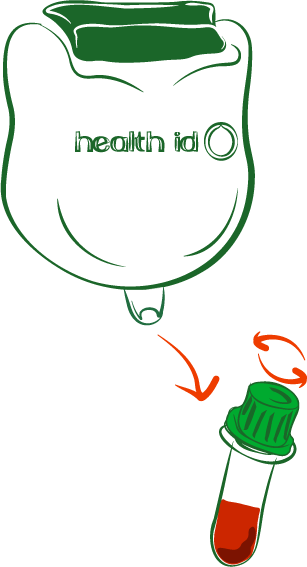

Remove the device from the upper arm. Afterwards, remove the filled microtube and prepare the sample for transport to the laboratory.

Instructions for use

Device Highlights

Up to 1 mL of  liquid capillary blood per collection

Fully automated —

lancet + vacuum extraction in a single device

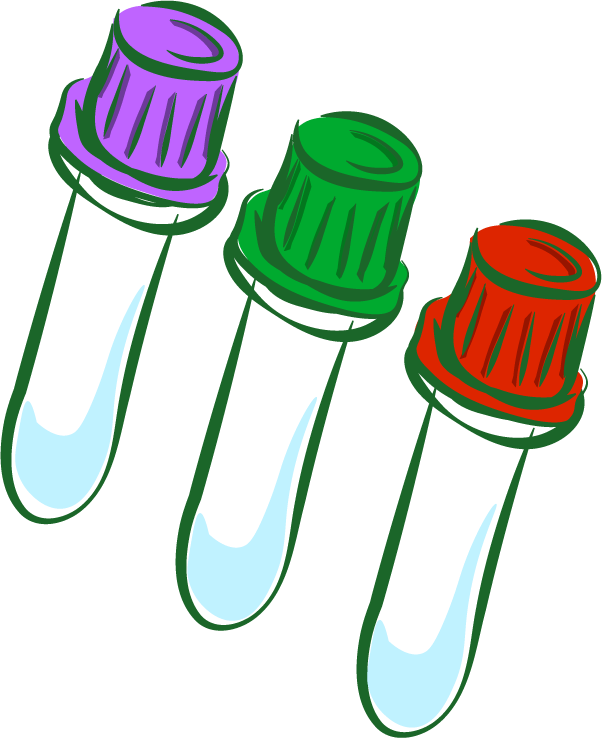

Microtube-based (EDTA, Heparin, Serum)

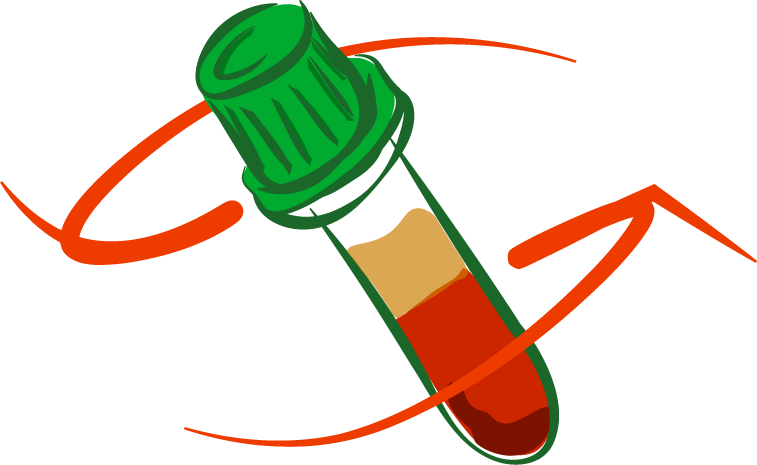

Ready for centrifugation and plasma separation

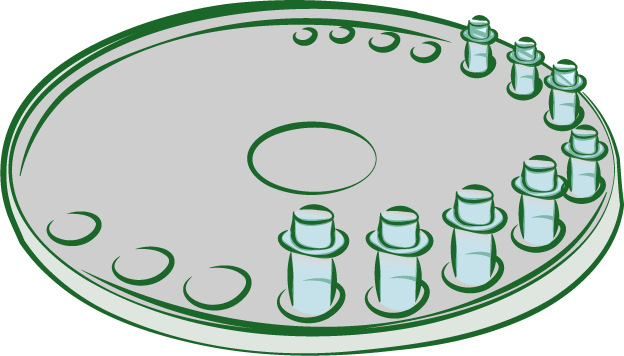

Compatible with routine laboratory analyzers

Shelf life: 24 months

RUO – Research use only

What you need to know

  • How does the collection process work?

    MicroBlood™ is applied to the upper arm. Once activated, the device performs a controlled microincision and initiates automatic vacuum-assisted extraction, channeling liquid blood into a standardized microtube. The procedure takes only a few minutes and requires no venous puncture.

  • Is self-collection possible?

    Yes, it is. The procedure is designed to be user-friendly, requiring only a quick fingerstick to extract a few drops of blood. Afterward, just pack the device in the transport pouch and send it off. No special storage or complex shipping logistics are needed.

  • Is specialized logistics required?

    No, specialized logistics are not necessary. After collection, the sample dries within the device, with desiccants and oxygen scrubbers ensuring long term stability. The device desing minimizes contamination risks and enables safe shipping using standard transportation methods.

  • What is the analytical performance?

    After applying 4 drops of blood, an average of 18.4 µL of plasma was recovered on an 85 mm² dried separation membrane, with a coefficient of variation (CV%) of 18.8%. Use of a correction analyte is recommended for optimal accuracy.


    The device’s analytical performance has been validated for cholesterol, HDL-cholesterol, triglycerides, and creatinine. With chloride concentration normalization, inter-assay imprecision ranged from 2.89% to 4.99%, and intra-assay imprecision from 3.29% to 4.85%. The mean bias for estimated serum concentrations from dried plasma measurements ranged between -0.74 and 1.64%.


    No statistically significant differences were observed in corrected concentrations for blood volumes of 160, 200, and 240 µL. Similarly, samples with hematocrit levels of 30% and 50% showed no significant differences compared to the reference hematocrit of 40%.


    Analyte stability is confirmed for at least 14 days at 40°C when stored within the device’s protective pouch.


    Additional validation studies are ongoing.

  • When is MicroBlood™ most beneficial?

    Remote patient monitoring, decentralized clinical trials, chronic disease follow-up, pediatric or difficult venous access patients, and any decentralized healthcare model requiring standardized liquid capillary samples.

Publications & News

Determination of testosterone using the HealthID PSD microsampling device

By Amanda P. Bondan, Ana P. Grando, Eduarda M. Reichert, Giovana P. Peteffi, Giovanna S. Grassi, Maitê M. Machado, Roberta Z. Hahn, Marina V. Antunes, Eduardo G. Camargo, Mariele F. Charão, Rafael Linden • August 15, 2025
This study describes the development and validation of a liquid chromatography-tandem mass spectrometry (LC-MS/MS) method to quantify T in dried plasma spot (DPS) samples obtained from capillary blood using the HealthID PSD microsampling device.

Dried Blood Spots to Assess Cardiovascular-Kidney-Metabolic Health

By Jacobson TA, Rahbari KJ, Schwartz WA, Bae Y, Zhang R, Nunes DA, Huang C, Issa RP, Smilowitz K, Yan LD, Hirschhorn LR, Khan SS, Huffman MD, Miller GE, Feinglass JM, McDade TW, Funk WE • March 20, 2025
Dried blood spot sampling offers a scalable strategy to close diagnostic gaps and improve global surveillance for cardiovascular‐kidney‐metabolic syndrome. Dried blood spot assays have been developed for biomarkers that offer mechanistic insights including inflammatory and vascular injury markers.

GC-NPD analysis of topiramate in capillary dried plasma

By Isabela Ritter Ott, Debora Renata Macali Oliveira, Ana Paula Grando, Klaus Vogel Frohlich, Magda Susana Perassolo, Rafael Linden & Marina Venzon Antunes • May 20, 2024
The study developed and validated a GC-NPD method for the quantification of topiramate (TPM) in capillary dried plasma spots (DPS) obtained using the HealthID PSD microsampling device. The method demonstrated good precision and accuracy, and TPM was shown to be stable in DPS stored at 4°C, 23°C, and 45°C for up to 21 d
See more
